Description

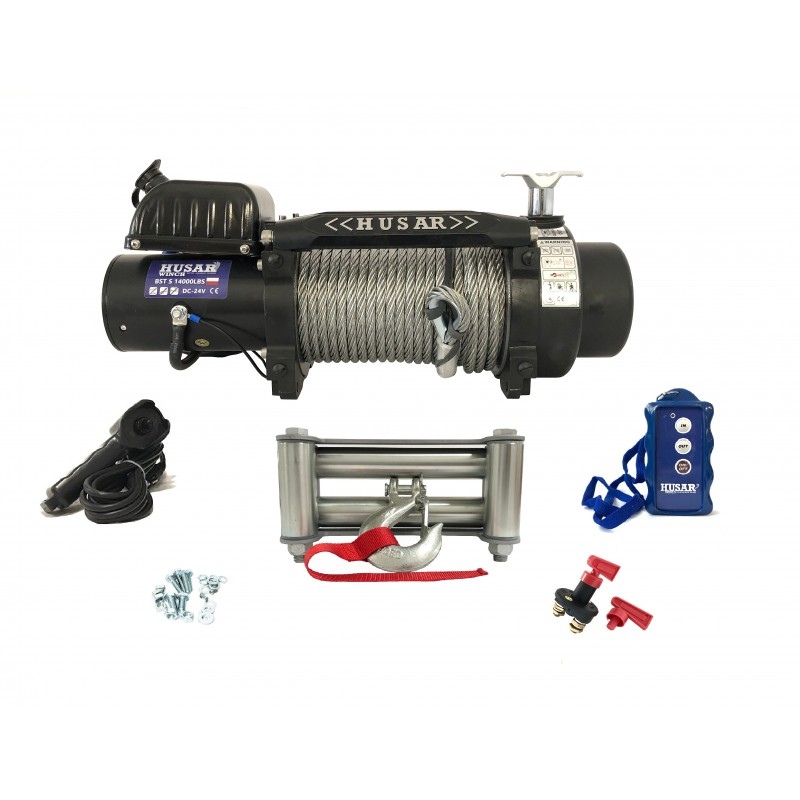

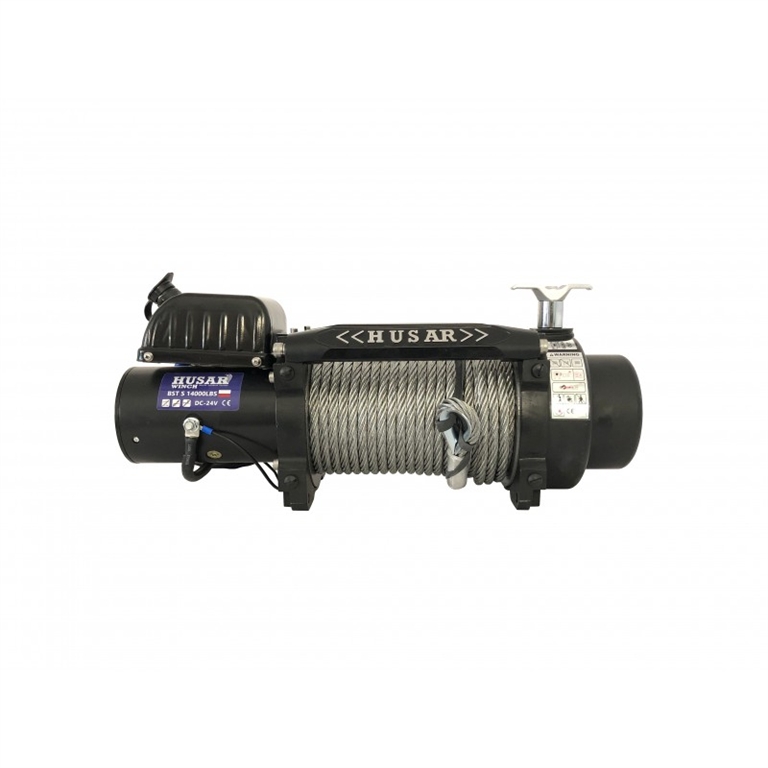

BST S 14000 lbs. Specifications
Shooting ability (single line) 14000 lb / 6350 kg
12V motor / 24V 6,7 CV / 5,1 kW / 6,4 CV 4,8 kW
Controls Wired / wireless remote control
Planetary gear a 3 stages
Transmission report 332: 1
Automatic brake
Rope 30m x Ø 10,2 mm
Cable gland Roller cable gland a 4 life
Net weight 58 kg
Mounting bolt pattern 254 mm x 114,3 mm 4-M12
Dimensions (L x P x A) 593 mm × 226 mm × 294 mm
Line speed and motor current (first layer)
Line pull Lbs 0 8000 1000 1400
Kg 0 3629 4536 6350
Line speed M / min 12V 5 1,9 1,7 1,2
M/min 24V 5,4 2 1,8 1,5
Motor current Amper 12V 80 310 350 480
Ampere 24V 40 145 185 250
Pulling capacity and cable
Layer of cable 1 2 3 4
Nominal circulation per layer 14000 11255 9410 8085
6350 5105 4268 3667
Cable capacity per layer 5,6 12,5 20 28,5
