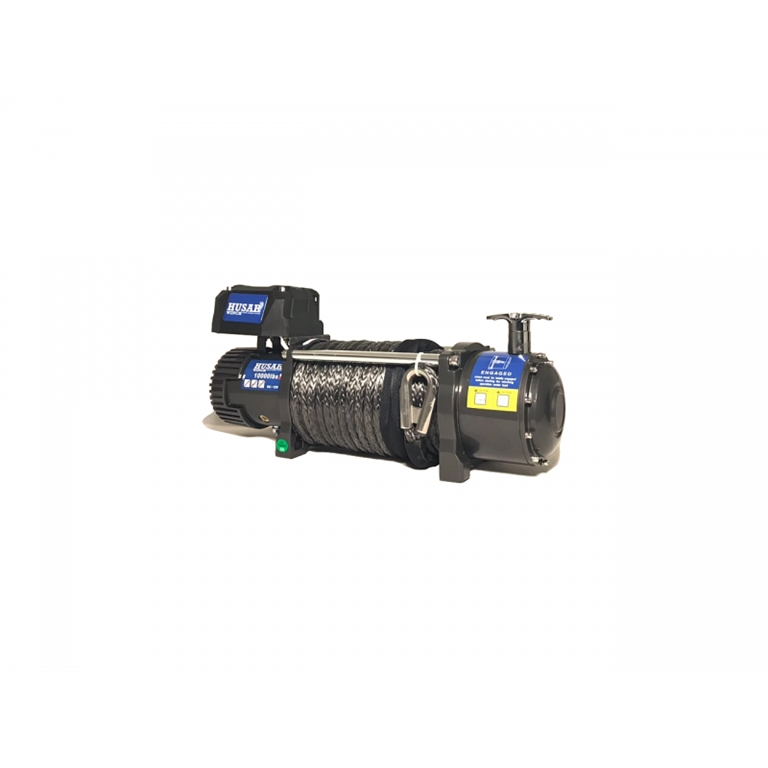

Technical specifications BST 10000 lb
Traction force (single rope) 10000 lb / 4536 kg
Engine from 5,5 CV / 4,0 kW
Control Wired / wireless remote control
Planetary gearbox a 3 stages
Transmission report 218: 1
Friction brake
Corda 28m x Ø 8,5 mm
Roller guide a 4 rolls
Net weight 30 kg
Distance of mounting bolts 254 mm x 114,3 mm
Dimensions (L x P x A) 546 mm × 160 mm × 218 mm
Rope speed and motor current (first layer)
£ 0 2000 6000 8000 10000
Rope load Kg 0 907 2722 3629 4536
Rope speed m / min 6,8 4,88 2,98 2,44 1,8
Absorbed current Ampere 80 130 230 290 350

Traction force depending on the rope layer
Rope layer 1 2 3 4
£ 10000 8800 7800 6600
Kg pull-up 4535 3990 3538 2994
Rope on the drum m 6 13,2 22 28
