Description

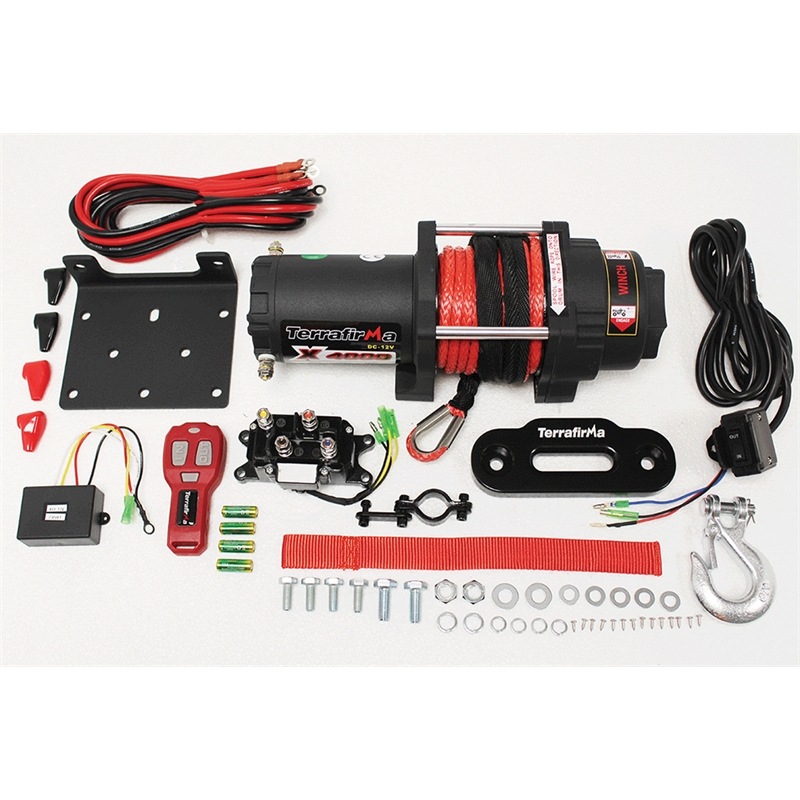

The TERRAFIRMA 12v X4000 electric winch is perfect in the loading space of a pick-up, trailers, side by e quad.

E’ compact and powerful, with a shooting ability from 4000 lb (1.800kg) through 10 meters of synthetic rope. Equipped with automatic complementary drum brake prevents the “rollback”. Supplied with alloy grommet, wireless and wired remote control just like its bigger brothers A 12000 e M12.5S.

SPECIFICATIONS:

Nominal line pull – 4000lbs single line (1814KG)

Engine – DC14V permanent magnetic motor, 1,6high efficiency CV

Gear train – planetarium to 3 stages

Transmission report – 198:1

Clutch – Sliding crown gear

Braking action – Automatic in the drum, independent mechanical brake

cable gland – Alloy cable gland

Synthetic rope – 33 (10,5 meters)

Mounting hole diagrams – 3″ x 4,875″ /125mm x 76mm)

Drums – Minimum 650 CCA for winch 25 square mm, 130″ (3,3m)

NW – 19 lb (8,6Kg)

CHARACTERISTICS

The engine gives 1,6 High efficiency CV draws low current for minimal battery consumption.

O-ring seals reduce the entry of dirty water

The matching drum and gear set ensures quiet operation

Full metal gearbox for long life

Large and easy to use free spool control

Change to 3 compact stadiums, efficient and reliable

10 meters of synthetic rope from 6 mm

Aluminum cable gland

Mounting plate included

Idle line speed of 16/min
