Description

Recommended for: motorsport applications
Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Disponibile in Sprung Ceramic e Cushioned Ceramic, there is a wide variety of options to choose from depending on the use of the vehicle.

Specifications:

• Torque capacity 380 Nm
• Pressure plate load 550Kg 60% increase over the standard
• Ceramic friction disc
• Heavy duty pressure plate
• The kit contains everything you need for a successful installation + accessories

extreme outback
Engineered and engineered to handle the toughest conditions on the planet, the Xtreme Outback clutch kits are the latest update 4×4 for heavy use on the road and off-road.
Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance of performance, durability and driveability. Used by motorsport teams and armored car manufacturers around the world, Xtreme Outback clutch kits can be trusted to get you there… and go back.

What's in the box?

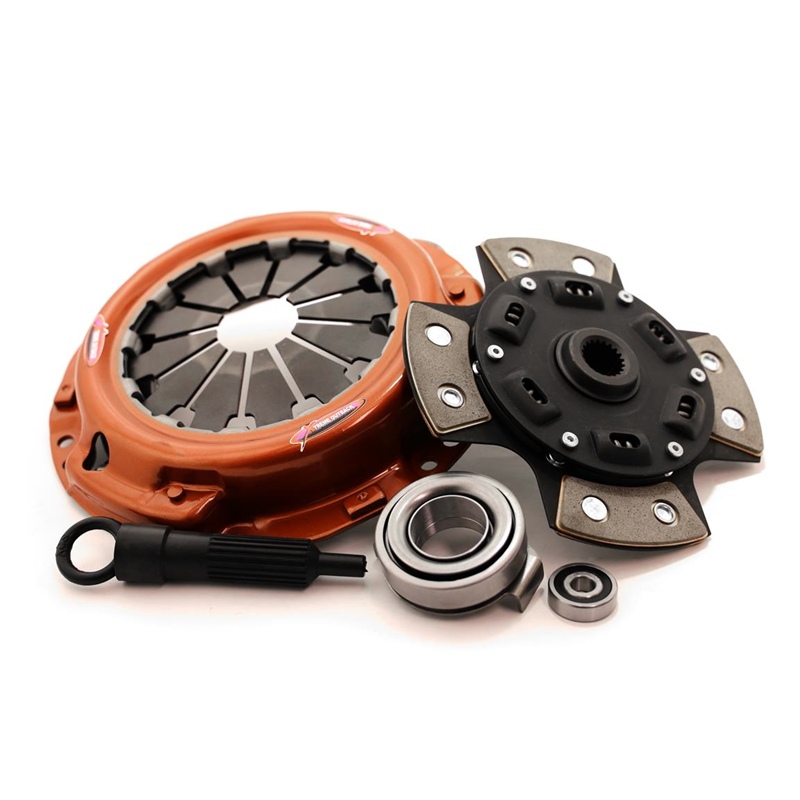

Xtreme Outback upgrade kits are available with everything needed for a successful installation + accessories you may wish to upgrade or replace while the gearbox is out of the vehicle.

Couple (Nm)
380

Load the pressure plate
550KG (60% more)

Shuttlecock pitch
-2,1 mm

Clutch disc diameter (mm)
190

Clutch disc groove count
20

Clutch disc grooves diameter (mm)
22,8

Recommended for
Test 4×4 high speed or desert race – Phase 2

Design
Single plate
Diameter [mm]
190

Stage
Phase 2

Weight (kg]:
5.64
