Description

Recommended for: motorsport applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Disponibile in Sprung Ceramic e Cushioned Ceramic, there is a wide variety of options to choose from depending on the use of the vehicle.

Specifications:

• Torque capacity 570 Nm
• Pressure plate load 650Kg +30% increased compared to the standard
• Cushioned ceramic friction disc
• Heavy duty pressure plate
• The kit contains everything you need for a successful installation + accessories

extreme outback
Engineered and engineered to handle the toughest conditions on the planet, the Xtreme Outback clutch kits are the latest update 4×4 for heavy use on the road and off-road.
Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance of performance, durability and driveability. Used by motorsport teams and armored car manufacturers around the world, Xtreme Outback clutch kits can be trusted to get you there… and go back.

The cushioned ceramic friction discs are similar to spring-loaded ceramic kits in that they have a spring-loaded hub to absorb the impact load, they also have a small amount of cushioning between the two friction surfaces on the disc, giving them better pedal modulation. These kits are designed for low speed testing where pedal feel is important but the high temperature capability of a ceramic disc is also beneficial..

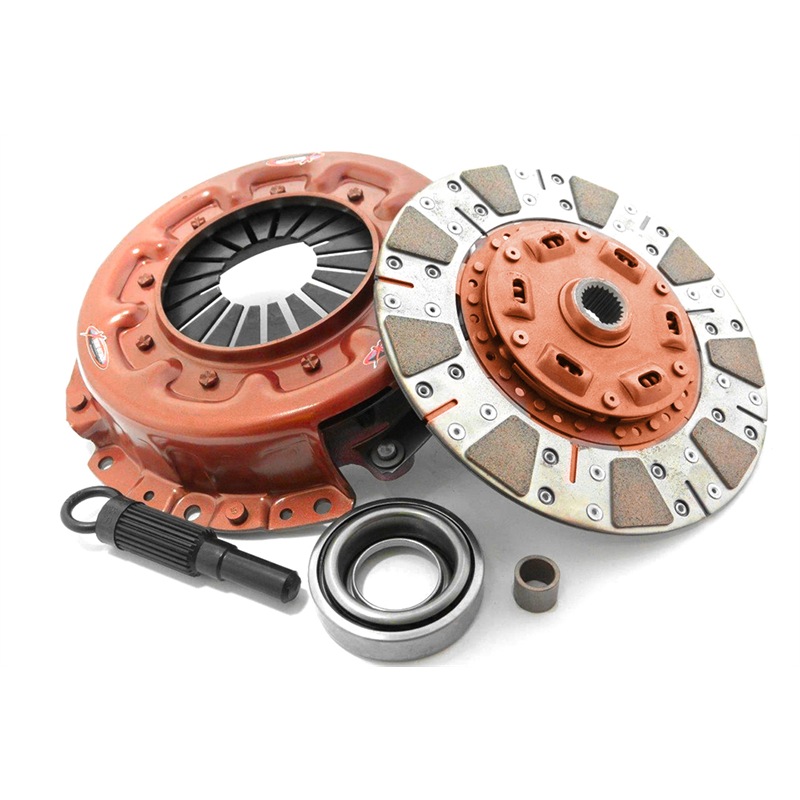

What's in the box?
Xtreme Outback upgrade kits are available with everything needed for a successful installation + accessories you may wish to upgrade or replace while the gearbox is out of the vehicle.

Couple (Nm)
570

Load the pressure plate
650KG (30% more)

Shuttlecock pitch
Dish

Clutch disc diameter (mm)
240

Clutch disc groove count
24

Clutch disc grooves diameter (mm)
25,4

Recommended for
Try at low speed – Phase 2

Design
Single plate

Diameter [mm]
240

Stage
Phase 2

Technical bulletins
TSB-165

Weight (kg]:
9.58
